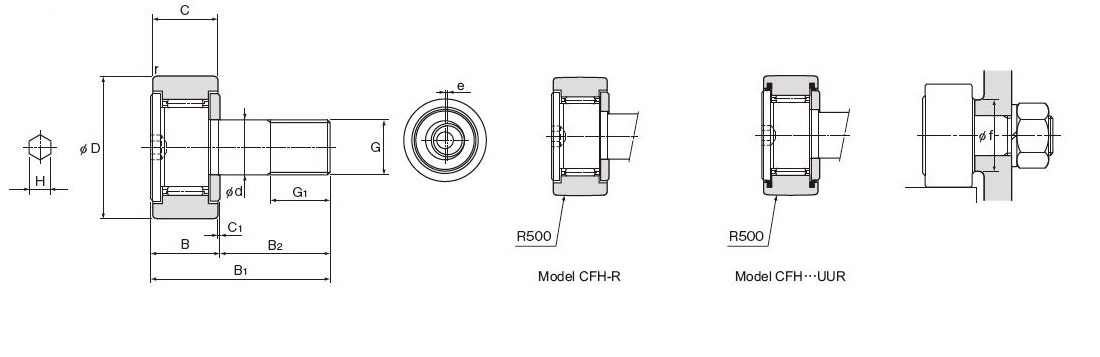

| Stud diameter d | Model No. | Main dimensions | Basic load rating | Maximum permissible load F0 | Track load capacity | Rotational speed limit1 | Mass | |||||||||||||||||
| Outer diameter D | Outer ring width C | Threaded G | G1 | B | Overall length B1 | B2 | C1 | Runout e | H | rsmin | Shoulder height f (Min.) | With cage | Full rollers | Cylindrical outer ring | Spherical outer ring | With cage | Full rollers | With cage | Full rollers | |||||
| Dynamic C | Static C0 | Dynamic C | Static C0 | |||||||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kN | kN | kN | kN | kN | min-1 | min-1 | g | g | |
| 5 | CFH5&8209;A | 13 | 9 | M5×0.8 | 7.5 | 10 | 23 | 13 | 0.5 | 0.2 | 3 | 0.3 | 9.7 | 3.14 | 2.77 | — | — | 1.42 | 2.25 | 0.53 | 29000 | — | 10.5 | — |
| 6 | CFH6&8209;A | 16 | 11 | M6×1 | 8 | 12 | 28 | 16 | 0.6 | 0.25 | 3 | 0.3 | 11 | 3.59 | 3.58 | 6.94 | 8.5 | 2.11 | 3.43 | 1.08 | 25000 | 11000 | 18.5 | 19 |
| 8 | CFH8&8209;A | 19 | 11 | M8×1.25 | 10 | 12 | 32 | 20 | 0.6 | 0.25 | 4 | 0.3 | 13 | 4.17 | 4.65 | 8.13 | 11.2 | 4.73 | 4.02 | 1.37 | 20000 | 8700 | 28.5 | 29 |
| 10 | CFH10&8209;A | 22 | 12 | M10×1.25 | 12 | 13 | 36 | 23 | 0.6 | 0.3 | 5 | 0.3 | 15 | 5.33 | 6.78 | 9.42 | 14.3 | 5.81 | 4.7 | 1.67 | 17000 | 7200 | 45 | 46 |
| 10 | CFH10&8209;1&8209;A | 26 | 12 | M10×1.25 | 12 | 13 | 36 | 23 | 0.6 | 0.3 | 5 | 0.3 | 15 | 5.33 | 6.78 | 9.42 | 14.3 | 5.81 | 5.49 | 2.06 | 17000 | 7200 | 60 | 61 |
