THK LG6S

More about: THK LG6S

Note) The basic load ratings each indicate the value when one row of balls receiving a load are directly under the load. The permissible torques each represent a reference value when the radial clearance is maximum (+10µm). The permissible moments each indicate a reference value when the radial clearance is the maximum (+10µm) with one row of balls receiving a load being directly under the load. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

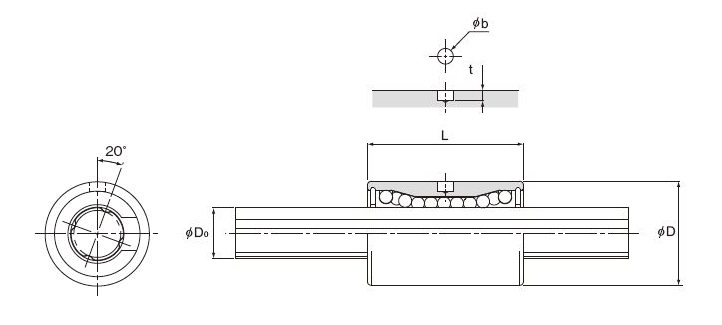

Model No.	Shaft diameter	Nut dimensions						Basic load rating		Permissible torque	Permissible moment	Mass
		Outer diameter		Length		Pin hole		Radial
	D0 h7	D	Tolerance	L	Tolerance	b +0.05 0	t +0.08 -0.02	Dynamic C	Static C0	C0T	MA
	mm	mm	mm	mm	mm	mm	mm	N	N	N-m	N-m	g
LG4S	4	8	0 -0.009	12	0 -0.12	1.2	0.8	335	473	0.066	0.33	2.5
LG4L		8		19		1.2	0.8	466	757	0.105	0.71	4.0
LG6S	6	12	0 -0.011	19	0 -0.2	1.5	1.2	494	681	0.241	0.74	10.5
LG6L		12		19		1.5	1.2	860	1499	0.530	1.71	14.0
LG8S	8	15		24		2	1.5	796	1065	0.838	1.46	16.5
LG8L		15		30		2	1.5	1203	1916	1.509	2.66	22.0
