THK LSC1515
Product name:THK LSC1515
Materials:Bearing steel
Availability:In stock
Price: send email to: sale@noksbearings.com
Clicks:2500
Editor:admin
Product Detail:
More about: THK LSC1515

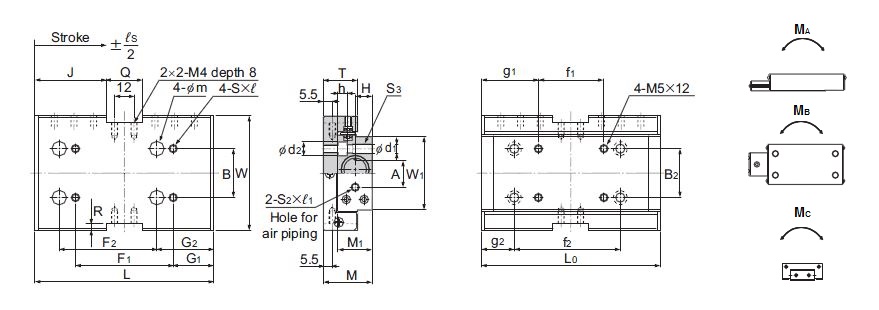

| Model No. | Max stroke ls +0.5 0 |
Cylinder inner diameter |
Theoretical thrust @500kPa |
Slide dimensions | Base dimensions | Static permissible moment | Basic load rating |
Mass | |||||||||||||||||
| Height M &177;0.25 |
Width W |
Length L |
T | B | F1 | G1 | S×l | B2 | f2 | g2 | f1 | g1 | d1×d2×h | A | S3 | S2×l1 | |||||||||
| MA , MB | MC | C | C0 | ||||||||||||||||||||||
| mm | mm | N | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | N-m | N-m | N | N | g | |
| LSC1015 | 15 | 10 | 38.2 | 25 | 50 | 80 | 24 | 20 | 40 | 20 | M4×7 | 20 | 40 | 20 | — | — | 3.3×5.5×3.5 | 13 | M4 | M5×5 | 4.9 | 7.45 | 392 | 676 | 0.25 |
| LSC1515 | 15 | 15 | 86.3 | 30 | 70 | 80 | 21 | 30 | 40 | 19 | M5×8 | 30 | 40 | 21 | 23 | 29.5 | 5.2×9×5.5 | 17 | M6 | M5×4.5 | 4.9 | 11.1 | 392 | 676 | 0.37 |
| LSC1530 | 30 | 15 | 86.3 | 30 | 70 | 110 | 21 | 30 | 60 | 25 | M5×8 | 30 | 60 | 25 | 40 | 35 | 5.2×9×5.5 | 17 | M6 | M5×4.5 | 8.43 | 15.4 | 549 | 951 | 0.52 |
| LSC1550 | 50 | 15 | 86.3 | 30 | 70 | 150 | 21 | 30 | 100 | 25 | M5×8 | 30 | 100 | 25 | 78 | 36 | 5.2×9×5.5 | 17 | M6 | M5×4.5 | 15.4 | 22.1 | 794 | 1350 | 0.72 |
Application of THK THK LSC1515
1. THK LSC1515 THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK LSC1515 In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK LSC1515 can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
