THK SHW27CRN

More about: THK SHW27CRN

AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

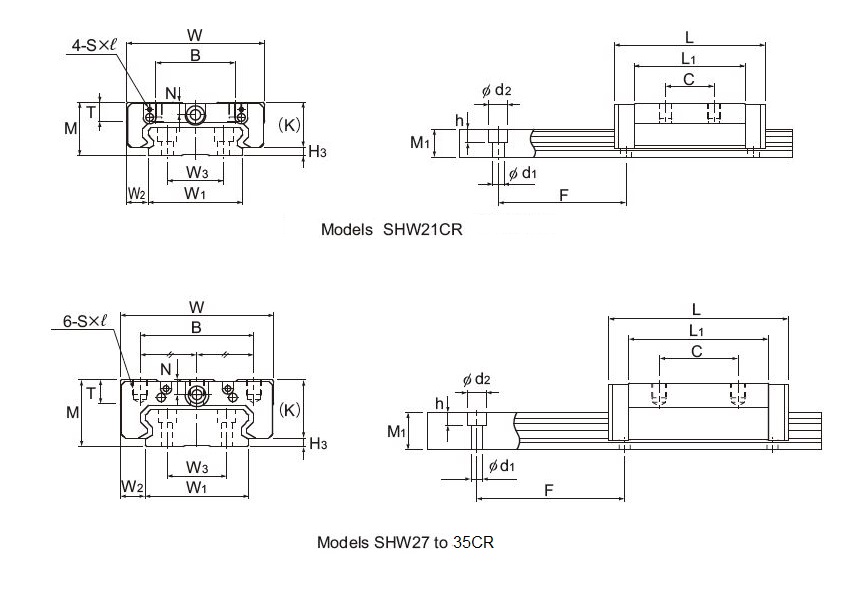

Model No.	Outer dimensions			Block dimensions			Rail dimensions		Basic load rating
									Radial
	Height M	Width W	Length L	B	C	S x l	Pitch F	d1xd2xh	Dynamic rating C	Static rating C0
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN
SHW21CRN	21	54	59	31	19	M5 x 6	50	4.5×7.5×5.3	8.24	12.8
SHW27CRN	27	62	72.8	46	32	M6 x 6	60	4.5×7.5×5.3	16	22.7
SHW35CRN	35	100	107	76	50	M8 x 8	80	7x11x9	35.5	49.2

Application of THK THK SHW27CRN

1. THK SHW27CRN THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK SHW27CRN In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK SHW27CRN can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
